AUTONOMOUS · AUTONOMOUS LOGISTICS

WOX Relay

Autonomous electric logistics for controlled operating environments.

Assess a project →Explore specifications ↓
GLOBAL REFERENCE · Final Kenya specification will be confirmed before order.
WOX Relay
AT A GLANCE

Numbers that shape the decision.

Key global-reference figures selected from the available WOX product information.

PlatformAutonomous electric logistics
Electrical architecture400 V
Automation levelL4 (SAE)
Cargo volumeApprox. 2.4 m³
Payload capacity500 kg
Operating range100+ km
Cargo volumeApprox. 5.4 m³
Payload capacity1,000 kg
THE MODEL

Autonomous electric logistics for controlled operating environments.

WOX Relay is the autonomous logistics platform in the approved Kenya portfolio, intended for structured project discussions and controlled operating environments.

Early interestProject-based operational assessment for controlled-route logistics, campuses, warehouses and industrial environments.
FEATURES

Designed beyond the specification sheet.

Product capabilities, comfort, technology and operational features available in WOX global-reference information.

Autonomy

L4 autonomous operation

The Relay platform is designed around SAE Level 4 autonomous logistics in defined operating domains.

Compute

Onboard real-time processing

Core navigation and sensor processing can run locally rather than depending entirely on cloud connectivity.

Operations

Remote operations centre

Fleet Command provides monitoring and human intervention capability.

Safety

Fail-safe architecture

Multiple protection layers support people, cargo and operational continuity.

Flexibility

Custom cargo bodies

Body configurations can be adapted to different logistics and industry missions.

Connectivity

Connected fleet platform

5G/4G, Wi-Fi 6, GNSS/RTK and V2X-ready connectivity support deployment and supervision.

Platform Variants

Relay 3 compact platform

Approx. 2.4 m³ cargo volume, up to 500 kg payload and 100+ km operating range for compact autonomous delivery duties.

Platform Variants

Relay 6 extended platform

Approx. 5.4 m³ cargo volume, up to 1,000 kg payload and 130+ km operating range for larger logistics missions.

Fleet Operations

Fleet Command supervision

Vehicles can be continuously monitored with operator intervention, redirect and stop capability.

Architecture

Drive-by-wire commercial platform

Relay is engineered as a purpose-built autonomous electric logistics platform rather than a conventional vehicle conversion.

APPLICATIONS

Where this platform makes sense.

Depot-to-depot transfer
Campus & industrial logistics
Warehouse perimeter operations
Airport & large-facility logistics
Retail & grocery replenishment
Smart-community delivery
Healthcare logistics
Ports & industrial sites
Hospital logistics
Airport ground operations
Industrial-park logistics
TECHNICAL DETAIL

Full specification reference.

Global-reference data may vary by trim, powertrain, market and final Kenya order specification.

Architecture1 item
Platform
Autonomous electric logistics
Autonomy1 item
Automation level
L4 (SAE)
Battery & Energy1 item
Electrical architecture
400 V
Charging2 items
Interface
CCS2 / GB/T
Modes
Fast & slow charging supported
Connectivity4 items
Cellular
5G / 4G
Wi-Fi
Wi-Fi 6
Positioning
GNSS / RTK
Vehicle-to-everything
V2X ready
Environment3 items
Operating temperature
-30°C to 55°C
Humidity
10%–90% RH
Weather adaptability
Rain, snow, heat and high-cold conditions
Operations2 items
Cargo body
Customisable configurations
Mission control
Centralised fleet management
Relay 34 items
Cargo volume
Approx. 2.4 m³
Payload capacity
500 kg
Operating range
100+ km
Maximum speed
60 km/h
Relay 64 items
Cargo volume
Approx. 5.4 m³
Payload capacity
1,000 kg
Operating range
130+ km
Maximum speed
60 km/h
Safety1 item
Architecture
Fail-safe / redundant safety layers
Technology3 items
Onboard compute
High-performance local processing
Remote operations
Fleet Command operations centre
Sensor array
Multi-sensor autonomous perception
The signed Kenya order specification is the controlling document. Values marked as global reference are informational until confirmed for Kenya.
GALLERY

Explore the vehicle.

Exterior, cabin, operational and detail imagery available for this WOX model or platform.

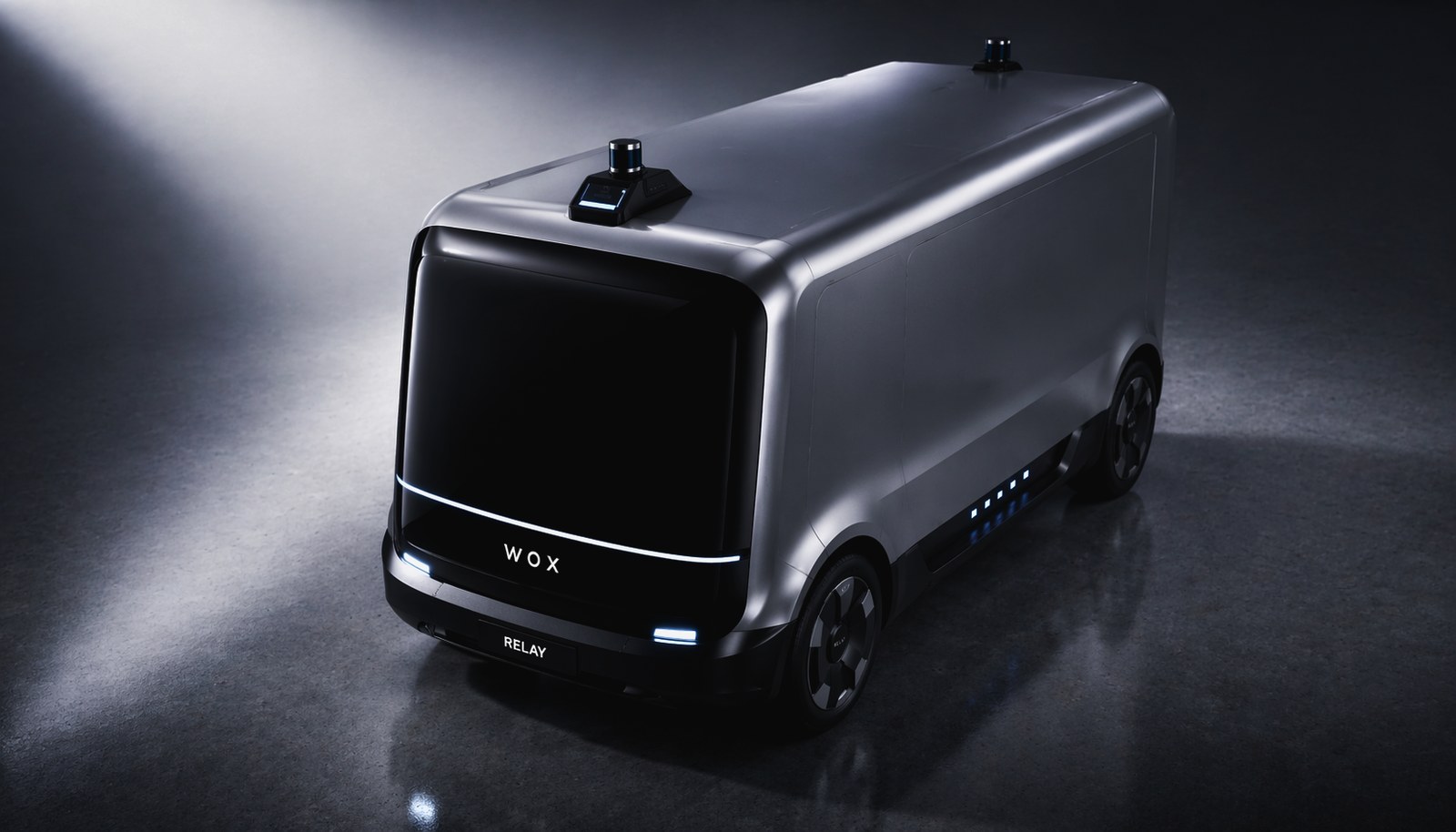

WOX Relay studio exterior
ExteriorPlatform exterior reference from the approved WOX Relay catalogue.

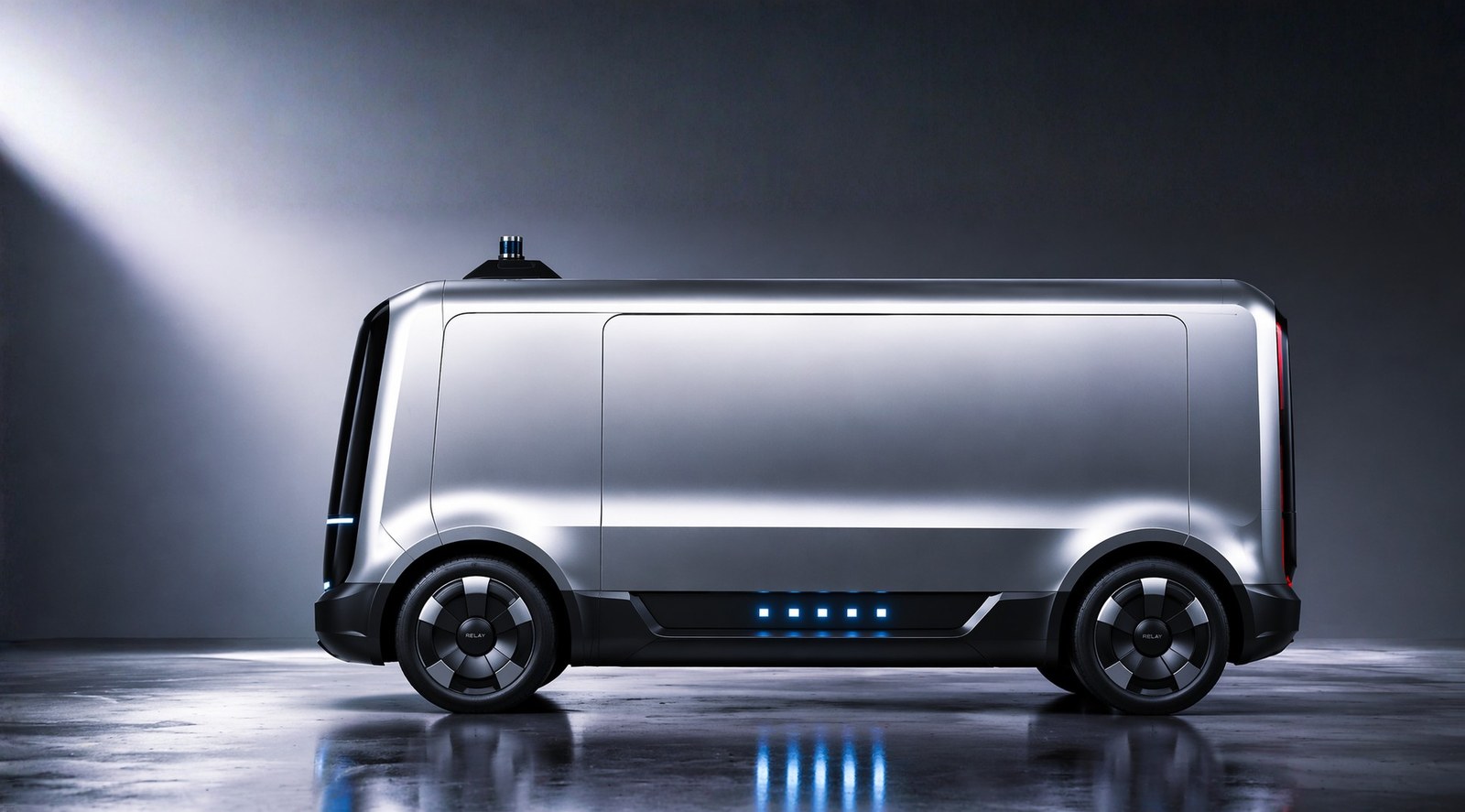

WOX Relay side profile
ExteriorSide-profile reference from the approved WOX Relay catalogue.
WOX Relay autonomous operation
TechnologyAutonomous-operation reference from the approved WOX Relay catalogue.
WOX Relay deployment applications
ApplicationsDeployment and operating-context reference from the approved WOX Relay catalogue.

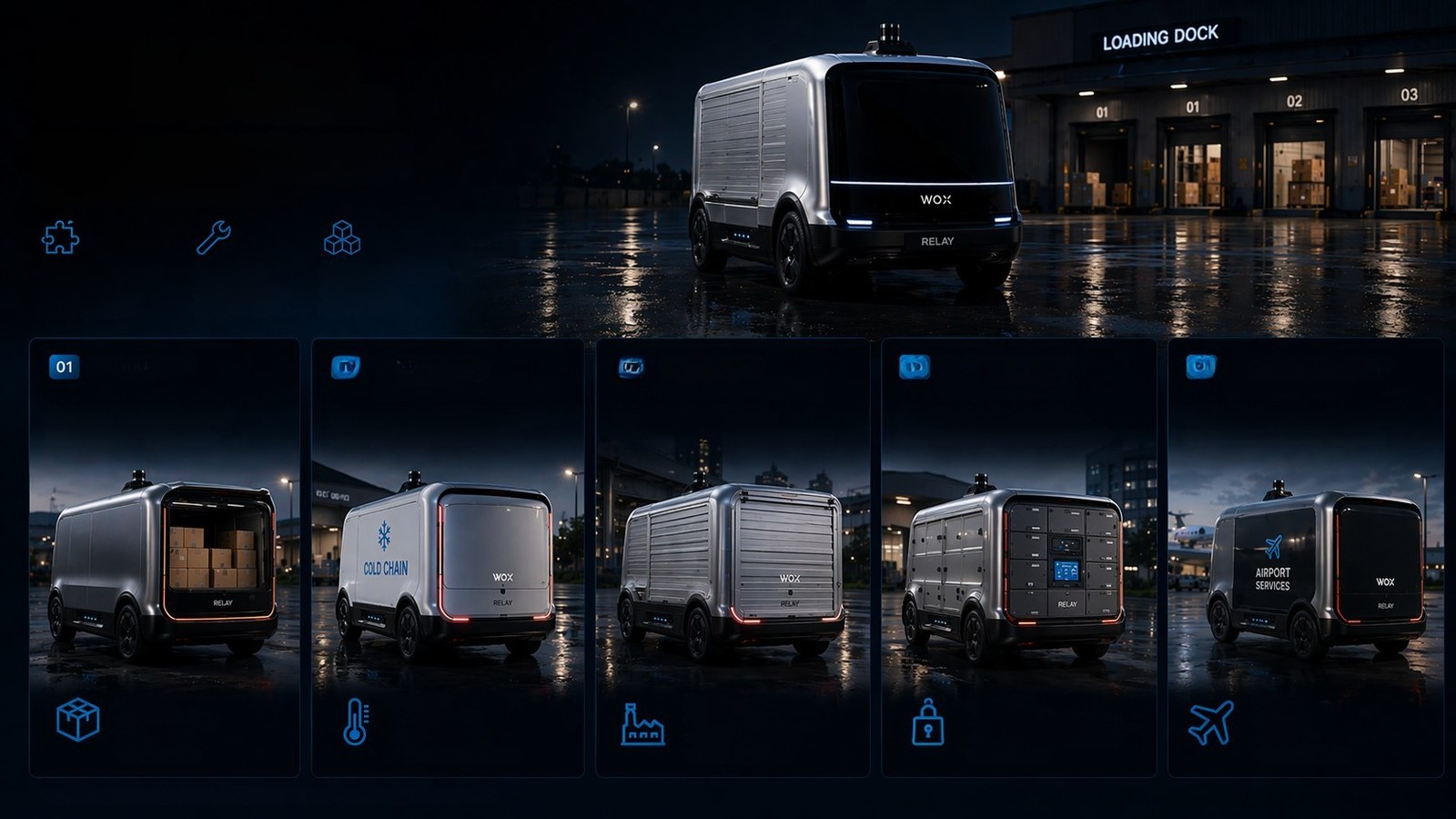

WOX Relay body configurations
ConfigurationsConfiguration reference from the approved WOX Relay catalogue.
WOX Relay urban operation
LifestyleUrban-operation reference from the approved WOX Relay catalogue.
